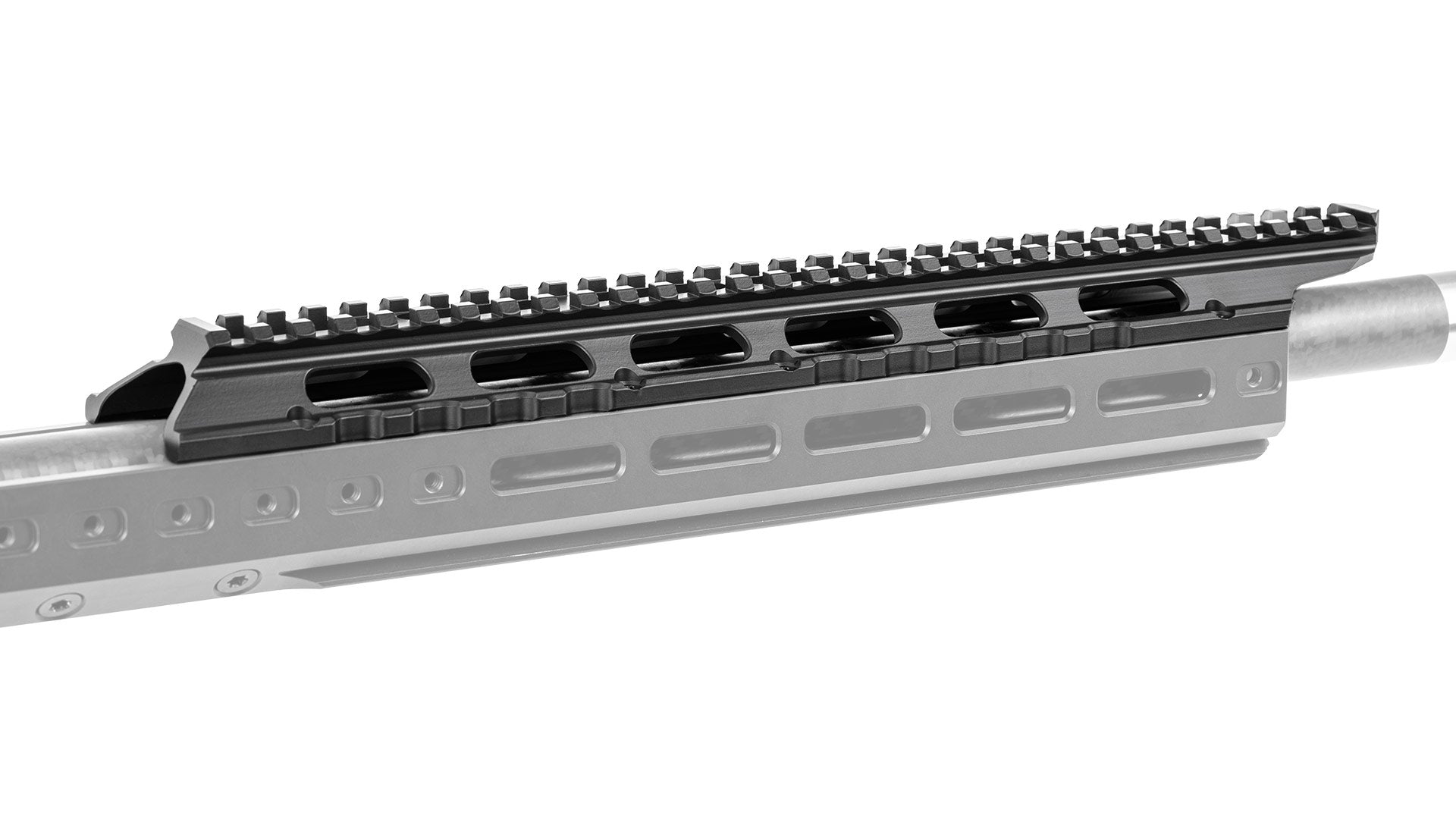

The 13" 20 MOA bridge runs the full length of your forend, keeping your clip-on night vision co-witnessed with your riflescope. What you see through the NV is what your reticle is looking at, so you're not compensating for a bridge that's slightly off-line.

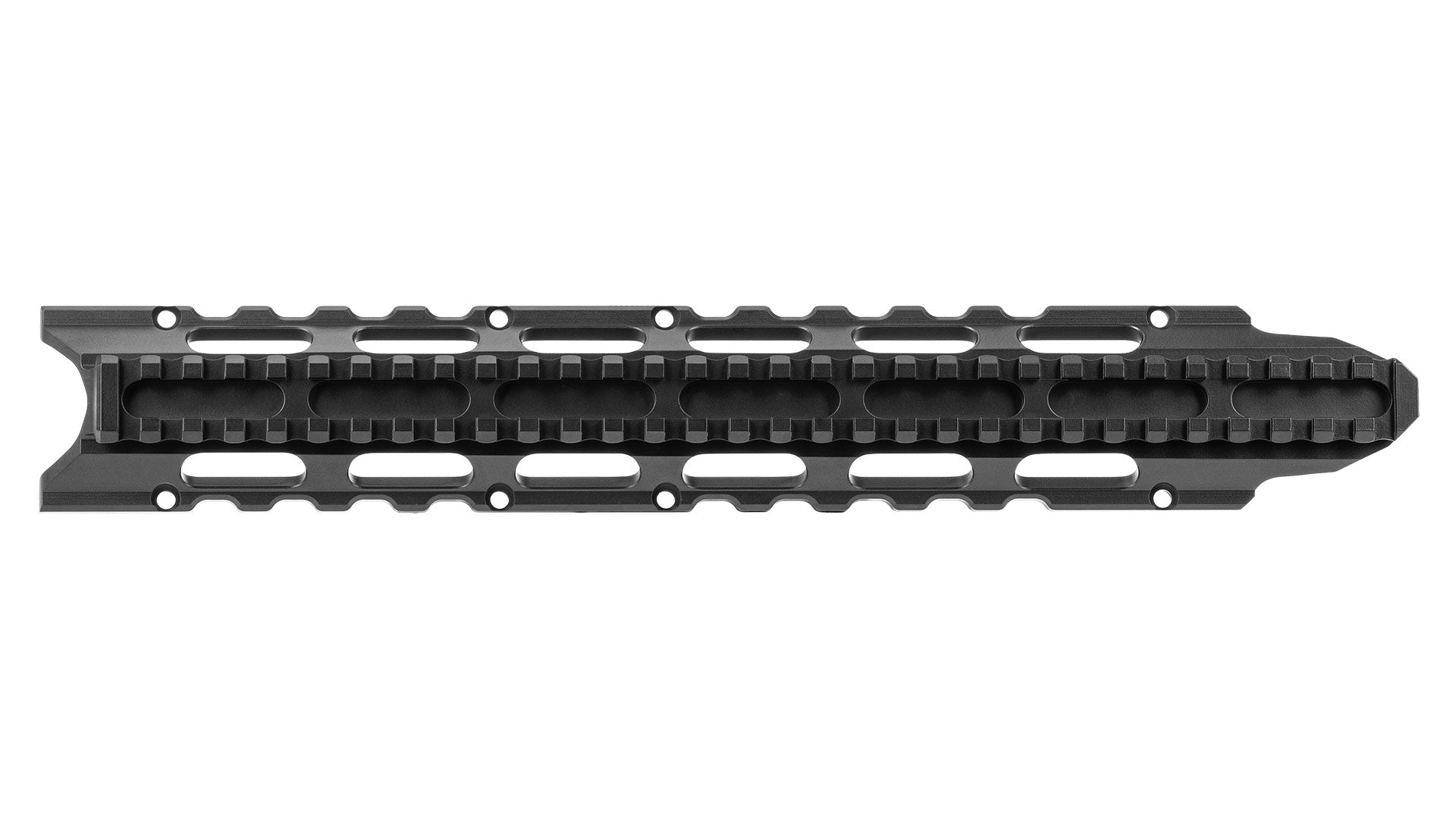

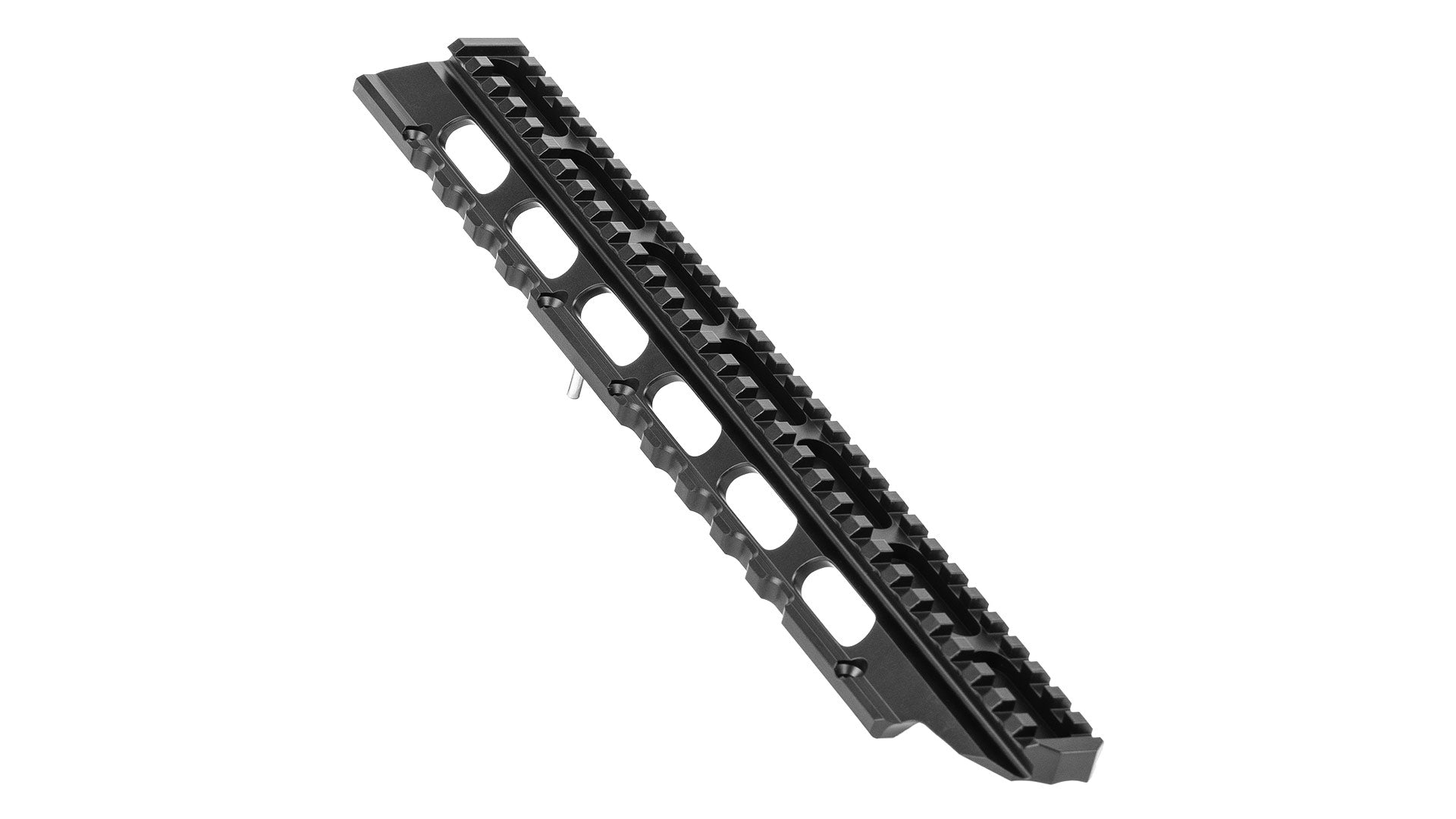

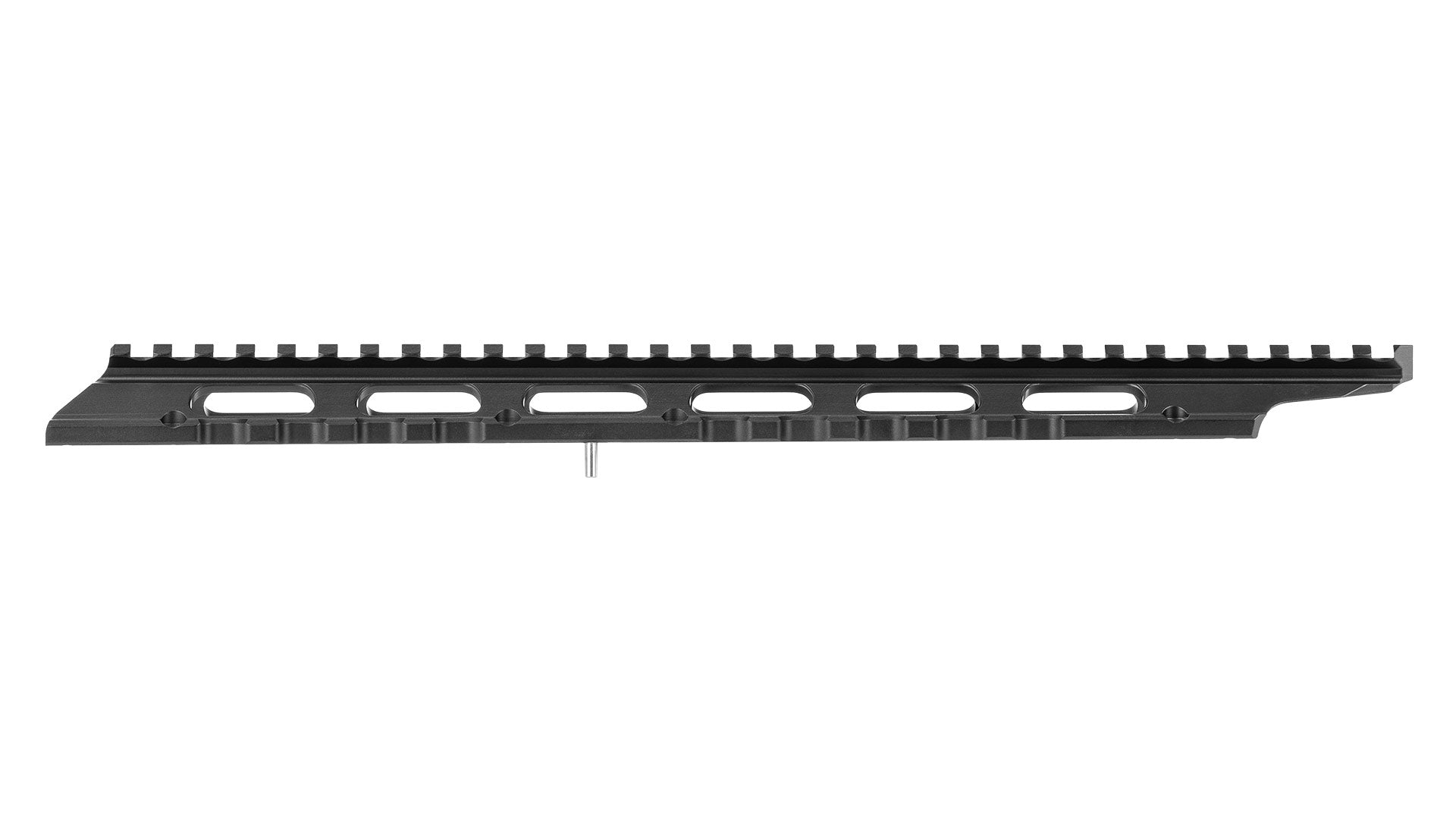

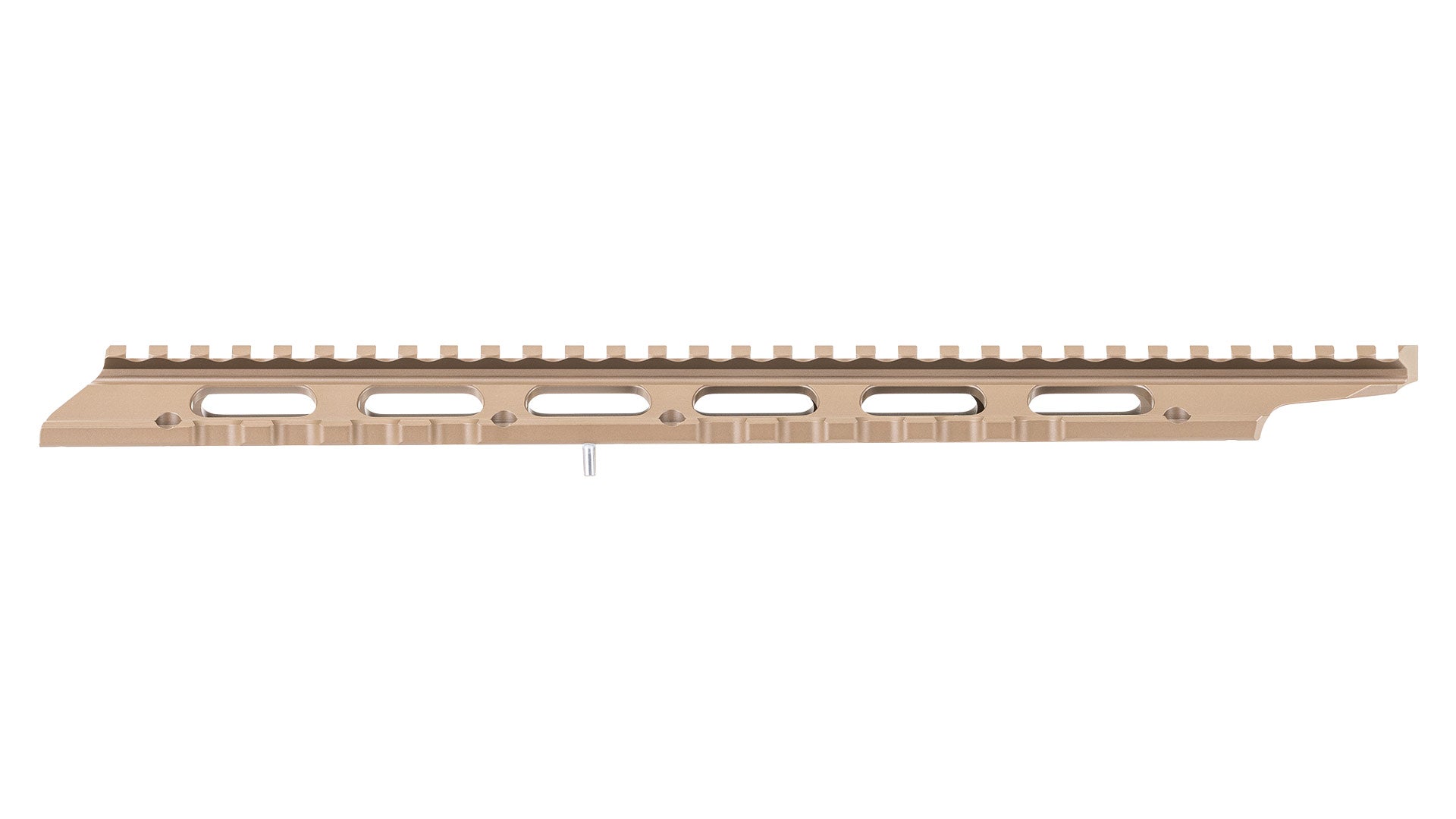

One-Piece NV Bridge
Regular price
€244,99 EUR
In Stock items ship in 1-2 business days
Backordered items ship in 8-10 weeks
30 Day Money Back Returns
Shipping
In Stock orders are processed and shipped within 1-2 business days.
Backordered items may take up to 10 weeks to ship.
Returns
We provide a 100% satisfaction guarantee on our products. If you receive any of our products and are not completely satisfied, you can return it to us within 30 days for a 100% refund of the product. After the 30 days, we provide lifetime support of the product.
Pairs well with
ONE ZERO, DAY OR NIGHT
BUILT TO TAKE THE CLAMPING
Mounting and removing a clip-on repeatedly wears on a rail that isn't built for it. Type III hard anodizing and Cerakote finish the bridge for exactly that kind of repeated use, so the mounting surface holds up over a full season instead of showing wear after a few range trips.
FITS YOUR BARREL
Larger contour barrels don't always clear a stock NV bridge setup. The included spacer kit raises the bridge 0.2" to accommodate straight contours up to 1.25", so a heavier barrel doesn't rule out running the bridge.
ONE ZERO, DAY OR NIGHT
The 13" 20 MOA bridge runs the full length of your forend, keeping your clip-on night vision co-witnessed with your riflescope. What you see through the NV is what your reticle is looking at, so you're not compensating for a bridge that's slightly off-line.
BUILT TO TAKE THE CLAMPING
Mounting and removing a clip-on repeatedly wears on a rail that isn't built for it. Type III hard anodizing and Cerakote finish the bridge for exactly that kind of repeated use, so the mounting surface holds up over a full season instead of showing wear after a few range trips.
FITS YOUR BARREL
Larger contour barrels don't always clear a stock NV bridge setup. The included spacer kit raises the bridge 0.2" to accommodate straight contours up to 1.25", so a heavier barrel doesn't rule out running the bridge.
13" 20 MOA NV BRIDGE
Keeps clip-on night vision or thermal co-witnessed with your optic across a full-length rail.
TYPE III HARD ANODIZED & CERAKOTE FINISH
Adds durability for repeated clamping and removal.

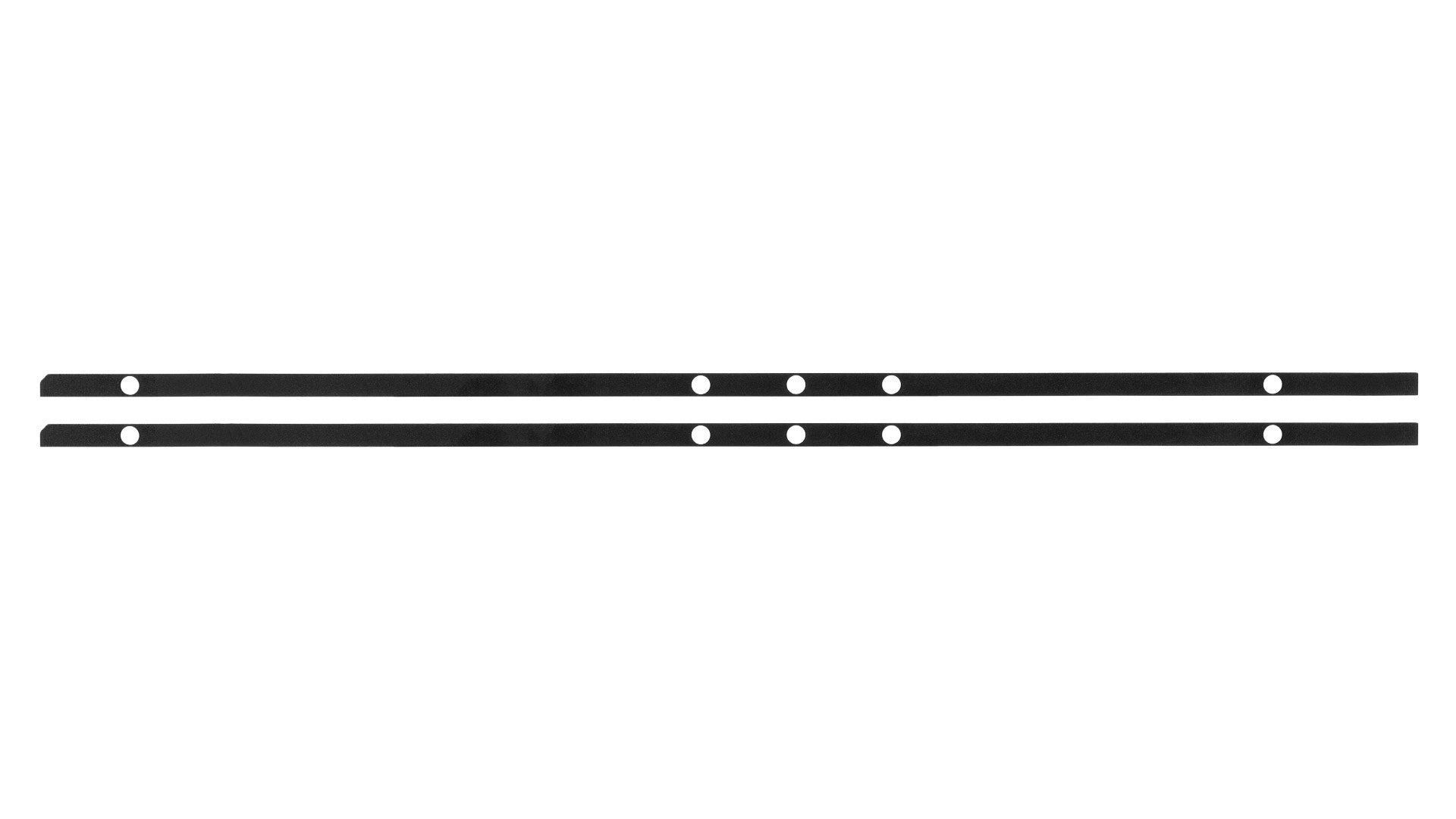

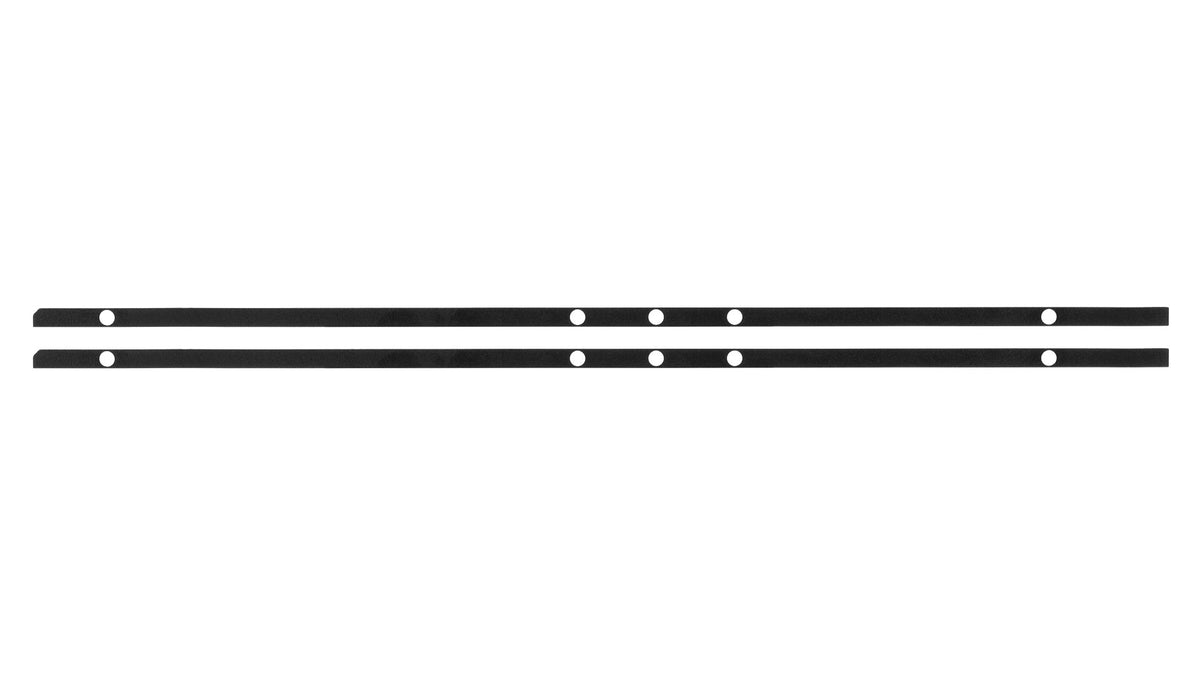

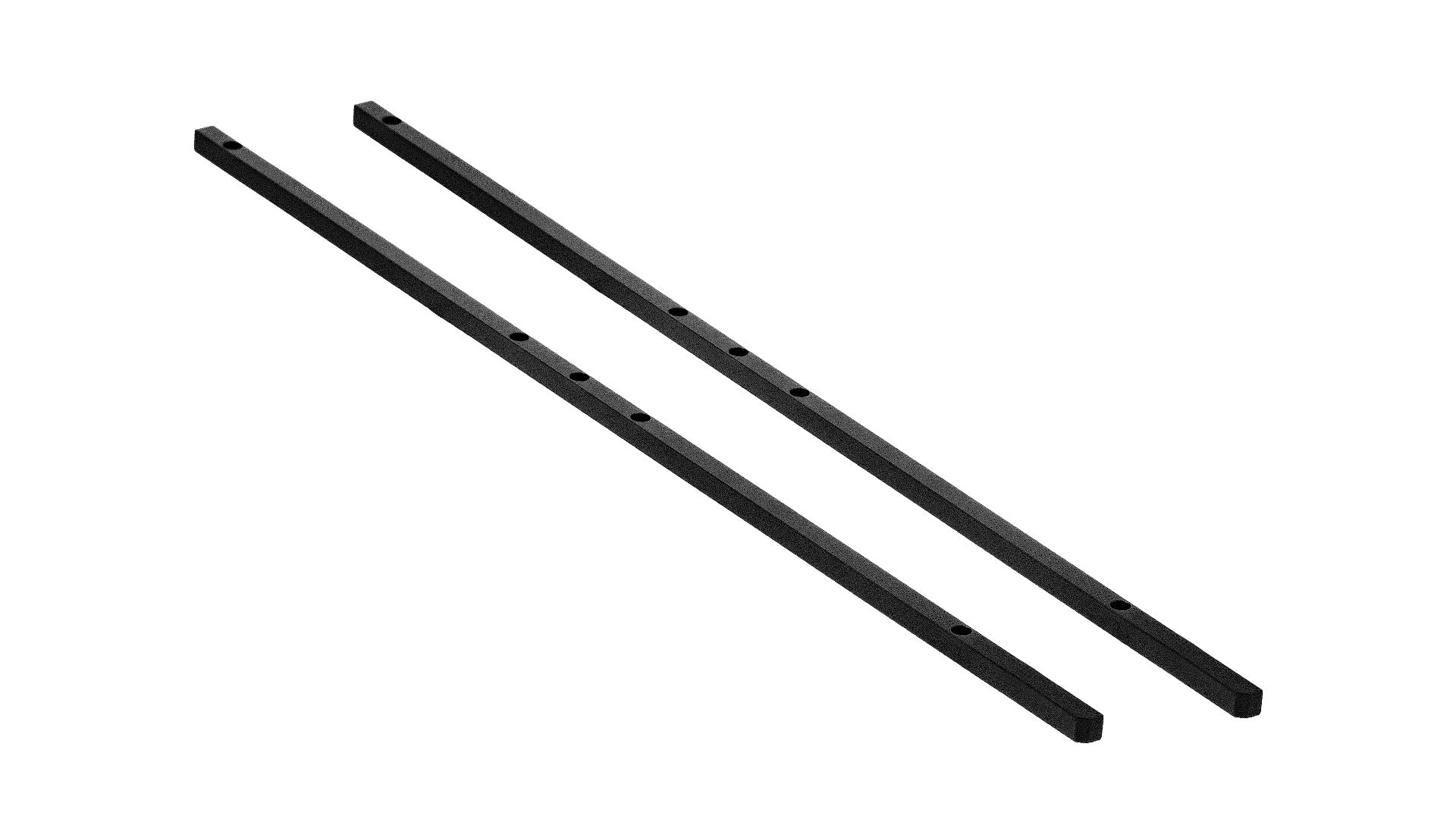

INCLUDED NV BRIDGE SPACER
Accommodates larger contour barrels up to 1.25" straight.
Compatibility
NV Compatible Chassis
NV Bridge Notes
- Muzzle diameter must be less than 1.1"
- Barrel length must be more than 15" to clear the end of the NV bridge
- Use a 20 MOA scope base/integrated rail
- Minimum recommended scope ring height: 1.5"
Using NV Spacers
For larger barrel diameters up to 1.25" straight MAX. Picatinny rail on the NV bridge will not be in-line with the scope base. Not recommended for NV/Thermal use. Higher scope rings than 1.5" may be required to clear the NV bridge -OR- a scope with a smaller objective lens diameter (1.700"+ height recommended)
SPECIFICATIONS
DIMENSIONS
13.01" x 1.96" x 0.95"
WEIGHT
Bridge: 5.9 oz
Spacer: 1.3 oz
MATERIAL
6061-T6 aluminum, Type III hard anodized & Cerakote
WHAT YOU GET
One-Piece NV Bridge
NV Bridge Spacer x2
- 6-32 x 0.375in FHCS SS BO TD
- 6-32 x 0.625in FHCS SS BO TD
[T10 15in-lbs]
